Fitment:
2008-2015 5.7L Toyota Land Cruiser
2008-2015 5.7L Lexus LX570
*See Fitment Tab for Details
Part Number:
01-26-57-123-BL
CARB EO Number:
D-488-58

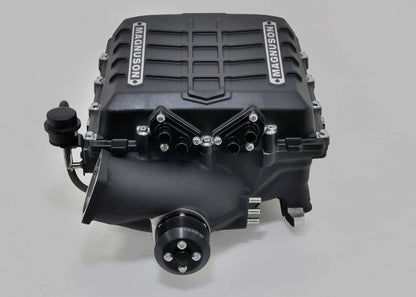

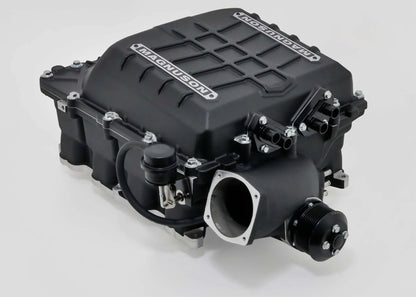

Designed for the 2008-2015 Toyota Land Cruiser and Lexus LX570 5.7L V8, the all-new Magnuson TVS2650 sets a new standard for performance. Engineered with no compromises, this supercharger system is built for maximum airflow, efficient cooling, and big horsepower gains across all engine speeds.
At its core is the Eaton TVS2650 high-helix rotor group, capable of delivering well over 1,000 rear-wheel horsepower. This system’s advanced design, featuring optimized inlet porting and a large custom intercooler, ensures ultra-efficient post-supercharger air cooling. With dual coolant ports and a high-flow intercooler, the TVS2650 keeps intake air temperatures low, delivering consistent power under any conditions.

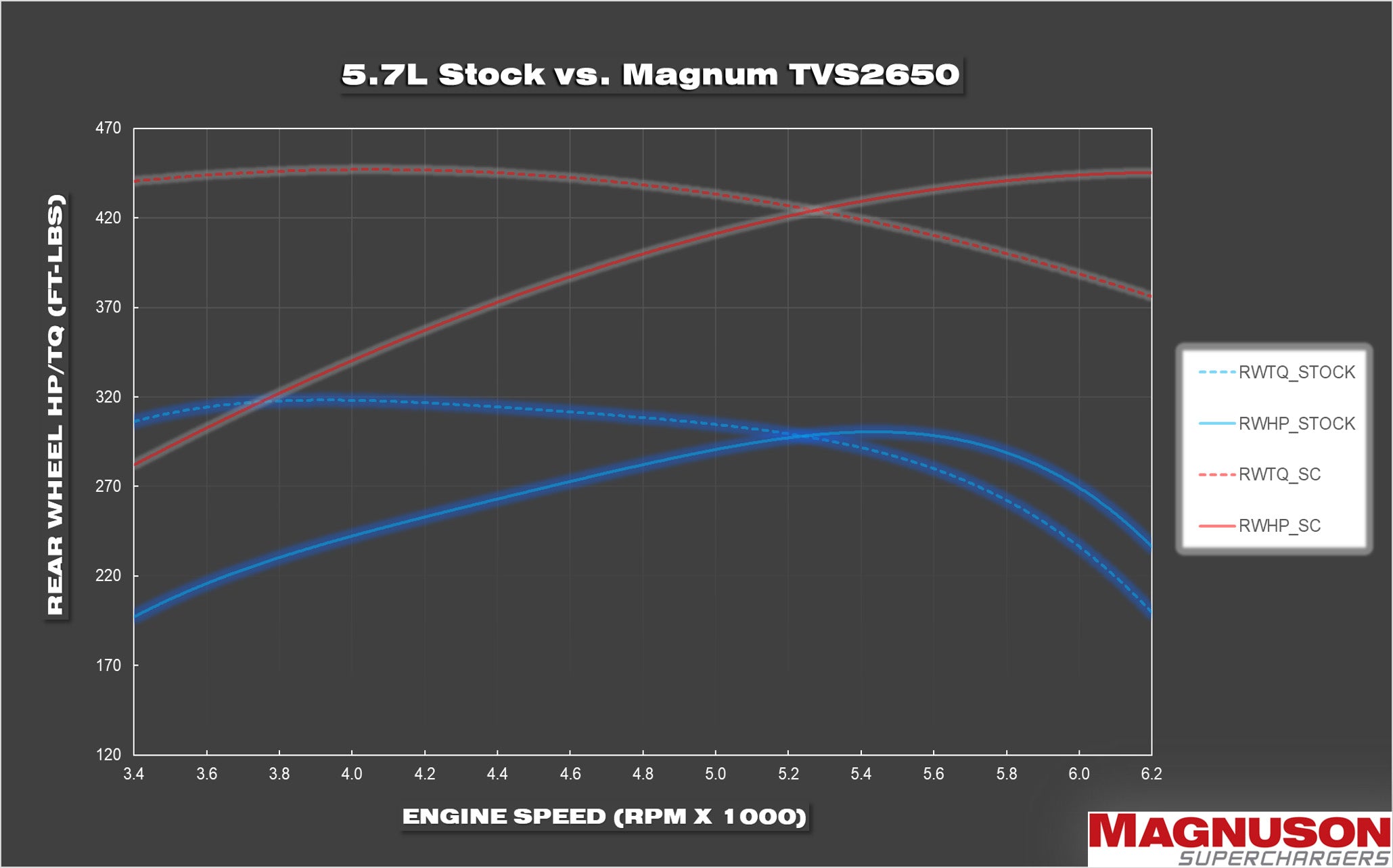

In testing, this system made 543 horsepower and 535 lb-ft of torque to the crank at just 7 psi, with significant gains across the entire RPM band. That’s usable power you can feel, whether you’re on the road or off.

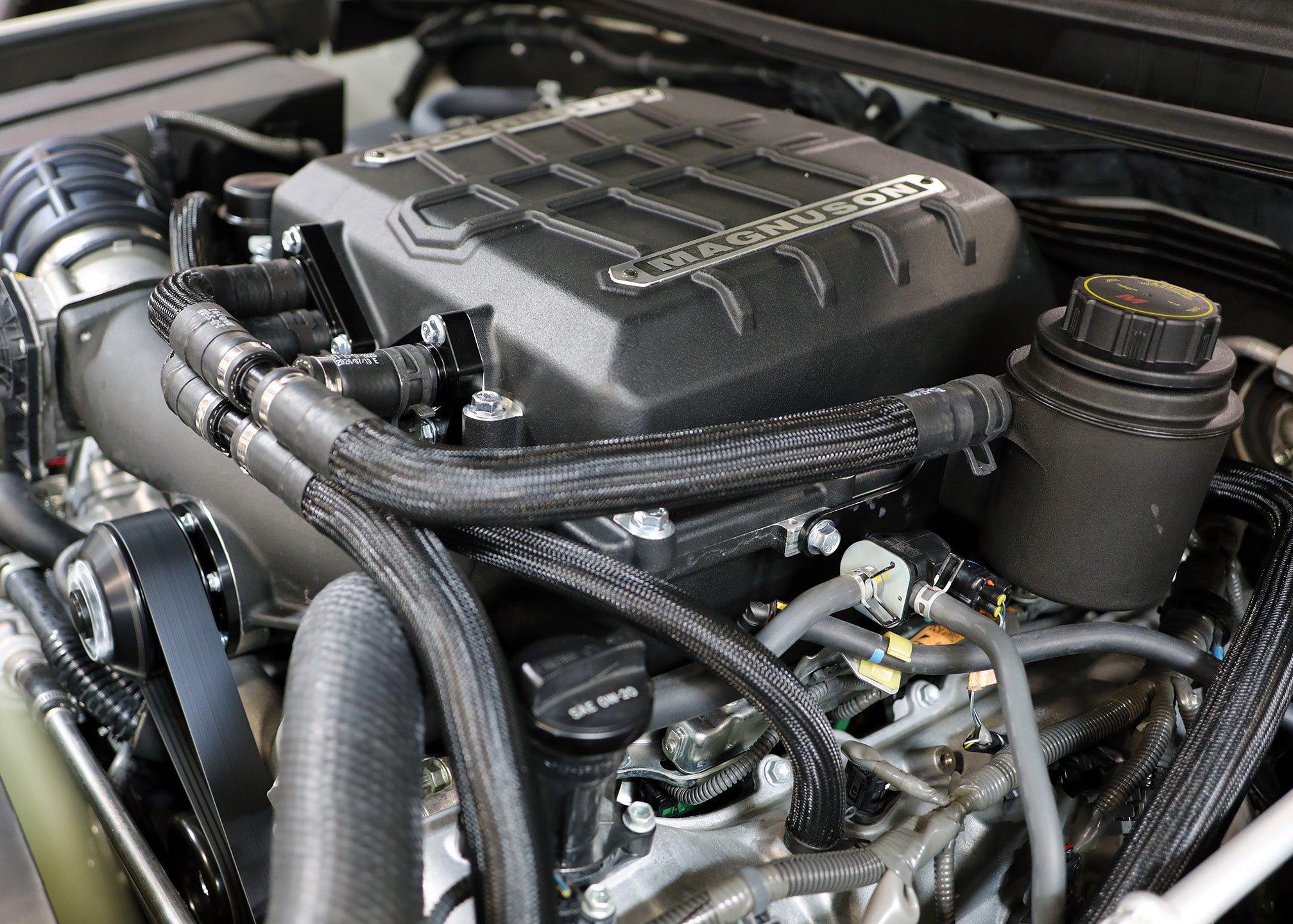

Every component in the TVS2650 kit is designed for quality and performance, ensuring a seamless installation and a factory-like fit and finish under the hood. Elevate your Land Cruiser or LX570 to new heights with the Magnuson Magnum TVS2650 Supercharger System.
- Features and Specifications
- Fitment
- Video
- Manuals, Documents, and Calibration
- 543 hp and 535 ft-lbs at the crank.
- Utilizes Eaton TVS Technology incorporating high helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
- Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
- Bolt-on anodized billet cartridge-style front drive allows for future belt line upgrades.
- High flow dual charge air cooler set-up with ¾" water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
- CNC-machined ports for optimized airflow into engine cylinders.
- Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
- Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
- Includes handheld tuner device, calibration, and detailed step by step instructions for a seamless installation experience.
- Standard 3-year/36,000-mile limited Supercharger System Warranty.
- 2008-2015 Toyota Land Cruiser and Lexus LX570 with 5.7L Gasoline Engines
