Magnuson High-Flow Turbo Upgrade | Toyota 3.4L V35A Twin-Turbo
Unlock More Airflow and Upper-RPM Power from Toyota’s 3.4L Twin-Turbo Platform
The Magnuson High-Flow Turbo Upgrade is engineered to increase airflow capacity and extend the performance potential of Toyota’s 3.4L V35A twin-turbo engine while preserving factory-style drivability, fitment, and response. Built around OEM-based turbocharger architecture, this upgrade improves compressor efficiency where the factory turbochargers begin to run out of airflow at higher engine speeds.
With a larger 56 mm high-flow compressor wheel, revised aero design, and upgraded compressor housing, the system supports substantial horsepower gains while maintaining the low-end response that makes the V35A platform so usable for trucks, SUVs, towing, and daily driving.
Key Features
- Supports 100+ horsepower gains with proper calibration
- Upgraded 56 mm compressor wheel (vs. 52 mm factory)
- 30% increase in compressor flow capacity
- OEM-based turbocharger architecture
- Bolt-on design with factory-style packaging and connections
- Designed to preserve drivability and turbo response
Ready to Upgrade?
Purchase through an authorized Magnuson distributor or contact Magnuson directly for vehicle programs, fleet builds, and regional availability.
More Airflow for the Toyota 3.4L Twin-Turbo Platform
Toyota engineered the V35A twin-turbo platform for excellent low-end torque, fast turbo response, and smooth daily drivability. While the factory turbochargers perform exceptionally well in those areas, airflow capacity becomes more limited as engine speed increases.
The Magnuson High-Flow Turbo Upgrade is designed to solve that limitation without turning the platform into a complicated custom turbo project. Instead of replacing the system with oversized universal turbochargers that compromise fitment and drivability, Magnuson retained the factory-style architecture and focused on improving compressor-side airflow where the stock system becomes restrictive.
The result is a clean, high-flow turbo solution designed to support stronger upper-rpm power while preserving OEM-style operation and packaging.

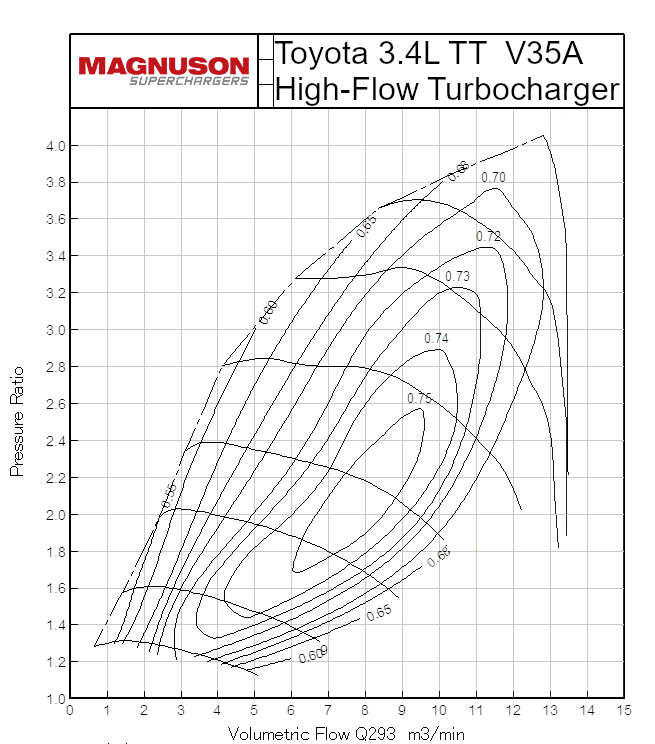

High-Flow Compressor Design Built for More Power Potential

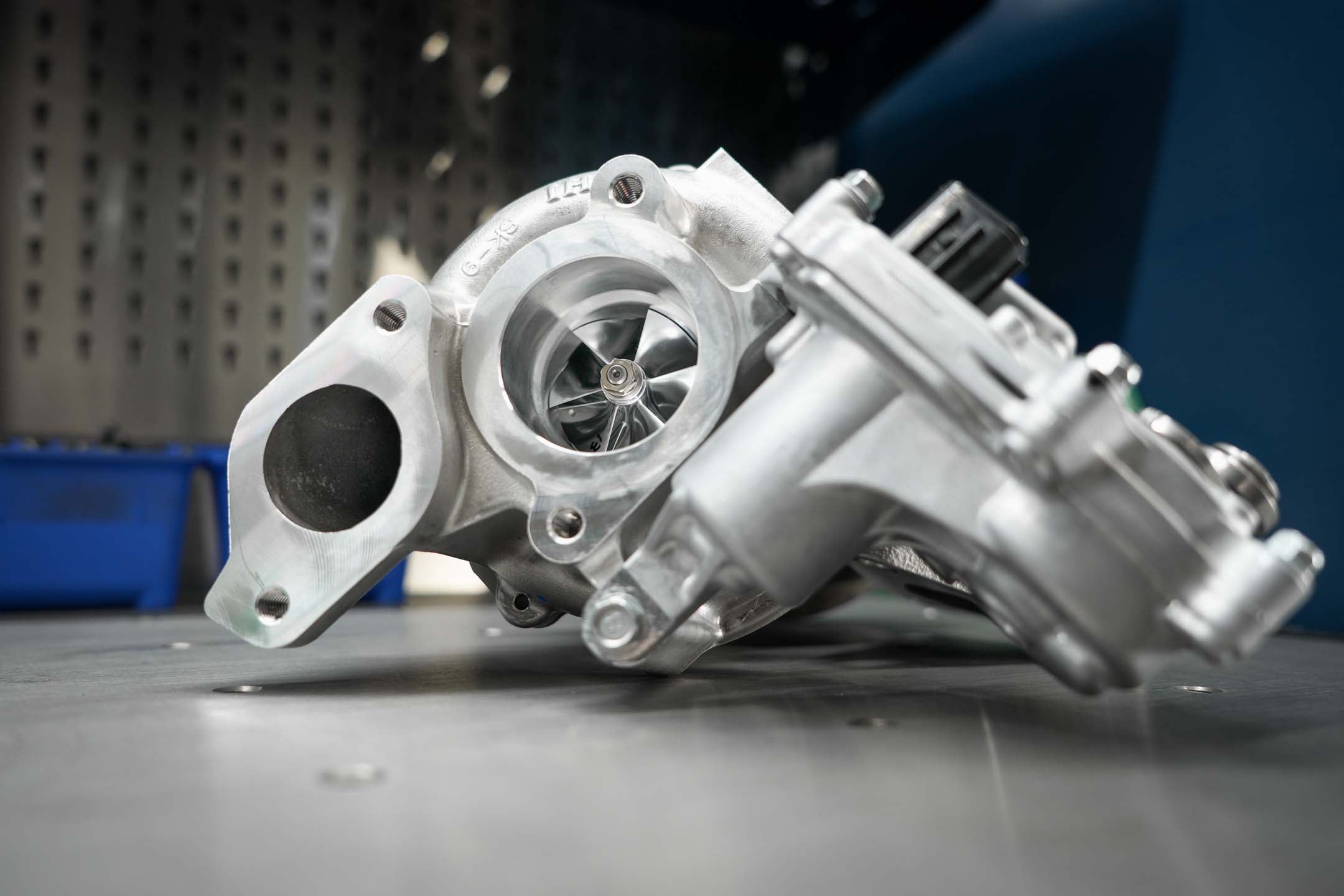

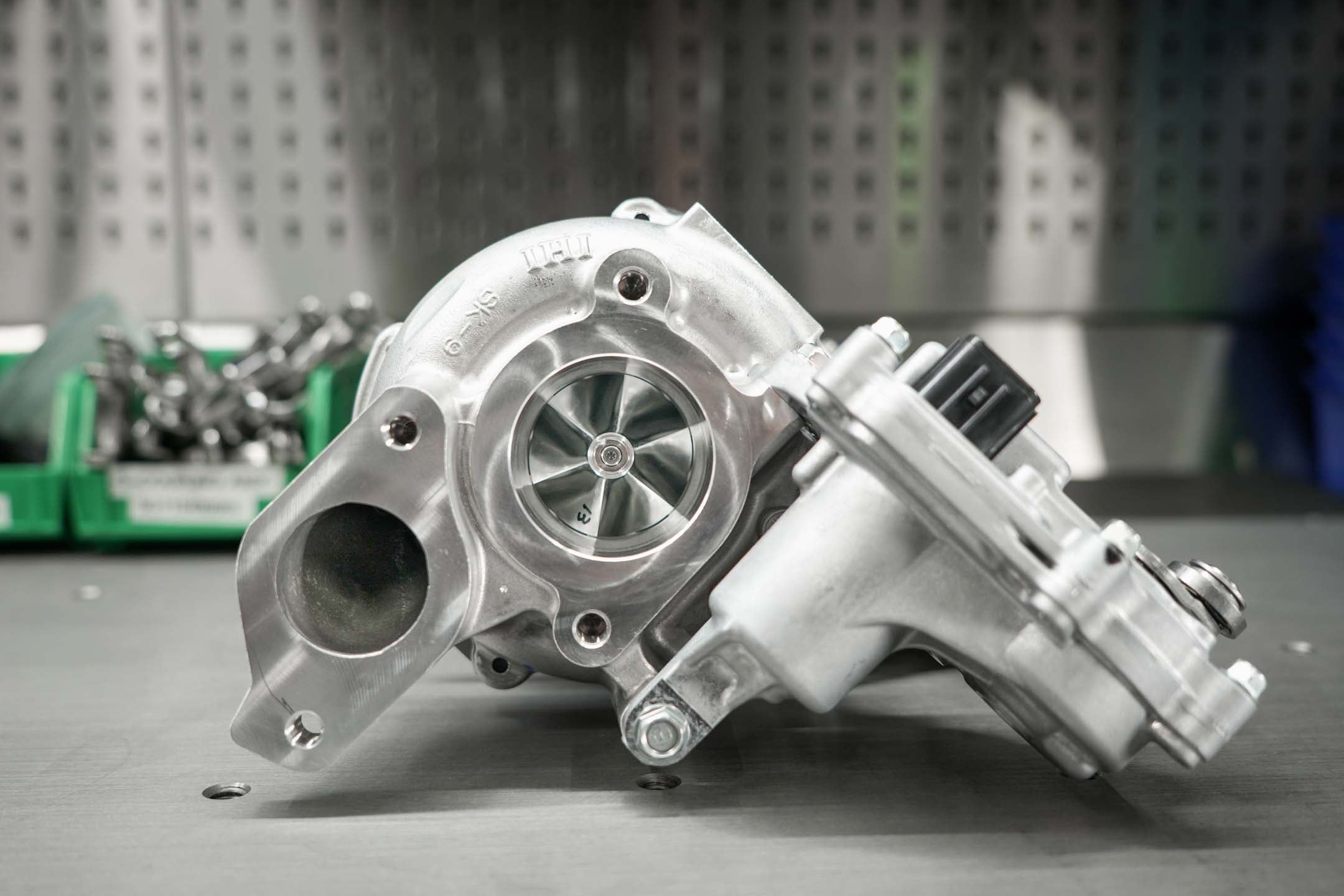

At the center of the system is an upgraded compressor design engineered for increased flow and improved efficiency. The factory turbocharger uses a 52 mm compressor wheel. The Magnuson upgrade increases that size to 56 mm while incorporating revised compressor aero and a modified housing to support additional airflow.
Compressor Upgrade Highlights
- Forged billet aluminum compressor wheel
- +4 mm larger compressor wheel diameter
- Revised compressor wheel aero design
- 30% increase in compressor flow capacity
- 10% higher adiabatic efficiency at peak power under stock pressure levels
- Designed to help reduce manifold charge temperatures
More airflow capacity allows the engine to continue making power farther into the rpm range instead of tapering off as the stock turbochargers reach their limit. Improved efficiency also creates a stronger foundation for repeatable performance and future supporting upgrades.
Built for Enthusiasts, Towing, and High-Performance Builds
The Magnuson High-Flow Turbo Upgrade is ideal for drivers looking to maximize the capabilities of Toyota’s 3.4L twin-turbo platform while preserving factory-style refinement.
Ideal Applications
- High-performance street builds
- Towing and hauling applications
- Overland and expedition vehicles
- Future power-focused builds
- Higher-elevation driving environments
Because the system maintains OEM-style packaging and drivability, it works exceptionally well for owners who want meaningful airflow improvements without sacrificing daily usability.
OEM-Based Turbo Architecture Matters
The Toyota V35A platform is tightly packaged and highly integrated electronically. Large aftermarket turbo conversions can create installation complexity, drivability issues, and control-system challenges.
Magnuson engineered this upgrade around OEM-based turbocharger architecture to maintain factory-style operation while significantly improving airflow potential. The hot side and center section retain stock-style design characteristics while compressor-side upgrades increase performance capability.
These upgraded turbos are fully assembled in the United States in the same facility that builds the production Toyota Tundra and Sequoia 3.4L twin-turbo units. This ensures consistent OEM-level quality, fitment, and integration.
This approach allows owners to increase airflow and horsepower potential without sacrificing the responsiveness and drivability expected from a modern Toyota truck or SUV platform.
Designed to Carry Power Beyond the Factory Turbo Limits
Factory V35A turbochargers provide excellent low-end and mid-range torque, but airflow restrictions become more apparent at higher engine speeds. As rpm increases, the stock turbochargers begin tapering airflow, limiting top-end performance.
The Magnuson High-Flow Turbo Upgrade is designed to extend airflow capacity and help the engine continue pulling harder through the upper rpm range while maintaining strong low-end response.
Performance Advantages
- Supports 100+ horsepower gains with proper calibration
- Maintains low-end and mid-range drivability
- Improves upper-rpm airflow efficiency
- Better suited for higher boost levels and future upgrades
- Improved performance potential at elevation and under sustained load
For performance enthusiasts, towing applications, and high-demand builds, maintaining airflow consistency at higher rpm becomes critical to maximizing the platform’s performance potential.
Available Through Authorized Magnuson Partners
The Magnuson High-Flow Turbo Upgrade is available through exclusive regional distributors.
Authorized Partners
- VF Tuner (North America)
- Top Innovation (Middle East)
For fleet programs, vehicle builds, or opportunities outside listed regions, contact Magnuson directly for availability and distribution information.
