01-26-62-175-BL
Cadillac CT5-V Blackwing LT4 6.2L V8 TVS2650 Supercharger System
- +90 Horsepower on stock calibration — 1000+hp capable!
- Direct bolt-on installation — OEM fit and finish
Pairs well with
Cadillac CT5-V Blackwing LT4 6.2L V8 TVS2650 Supercharger System
Proven Performance Gains

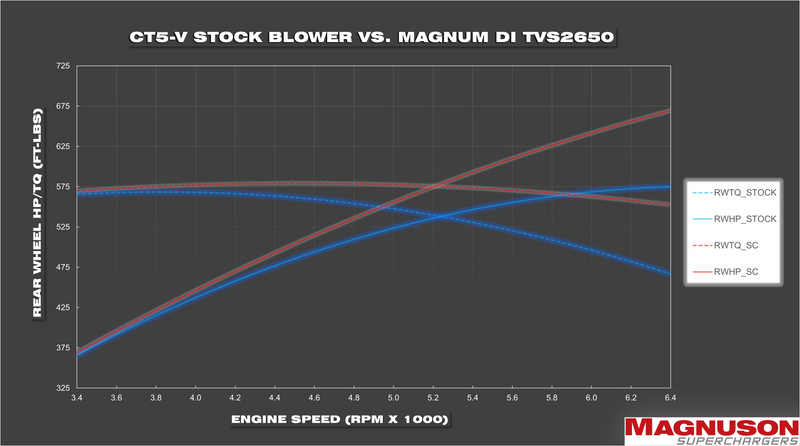

Adds +90hp on the stock calibration, with cooler temps and consistent gains across the RPM range
Hear It In Action
From idle to wide open throttle, the TVS2650 adds a distinct edge to Cadillac’s LT4 soundtrack.

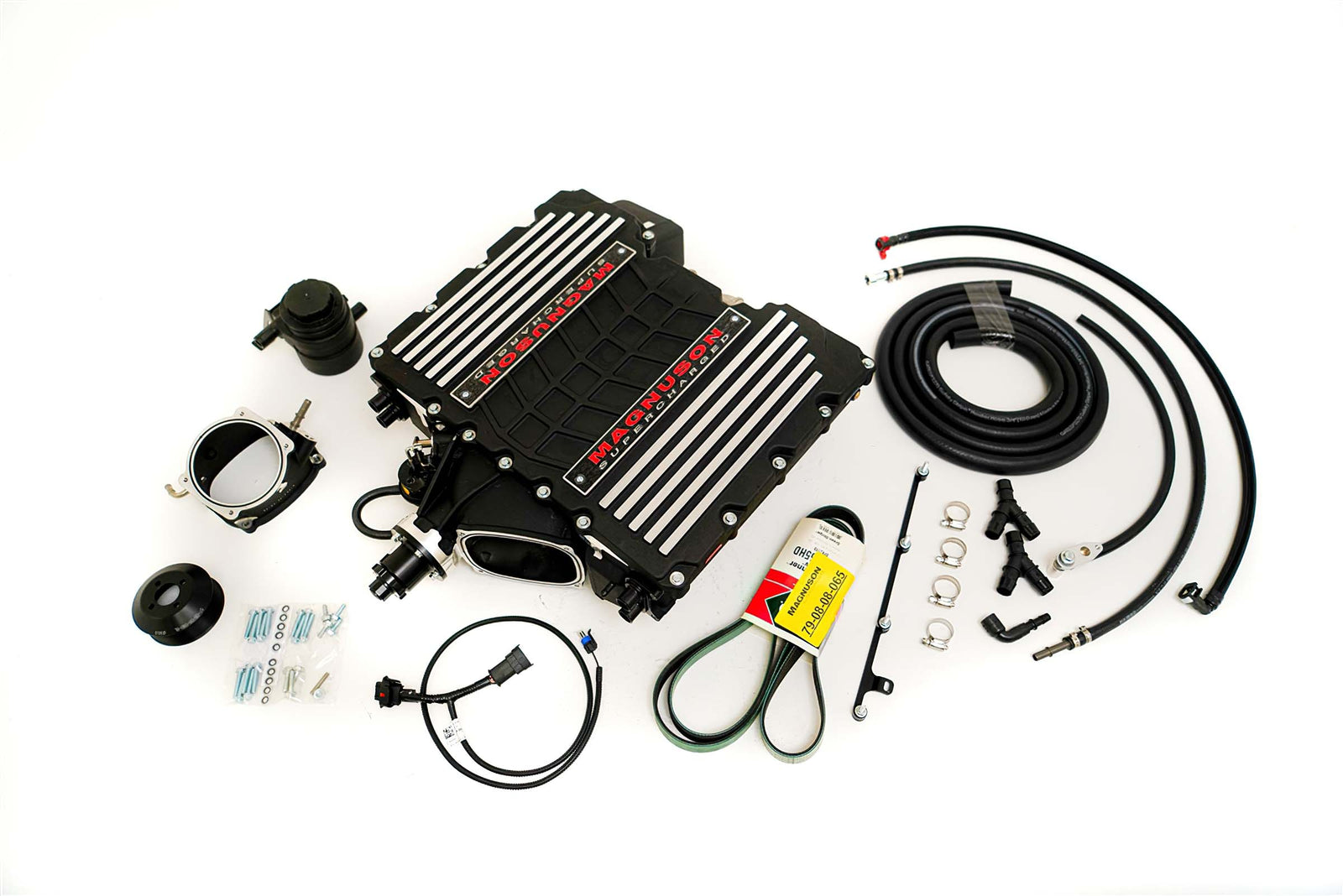

Complete Bolt-on Kit
Direct OEM replacement with dual charge air coolers, hardware, and gaskets included—no tuning required.

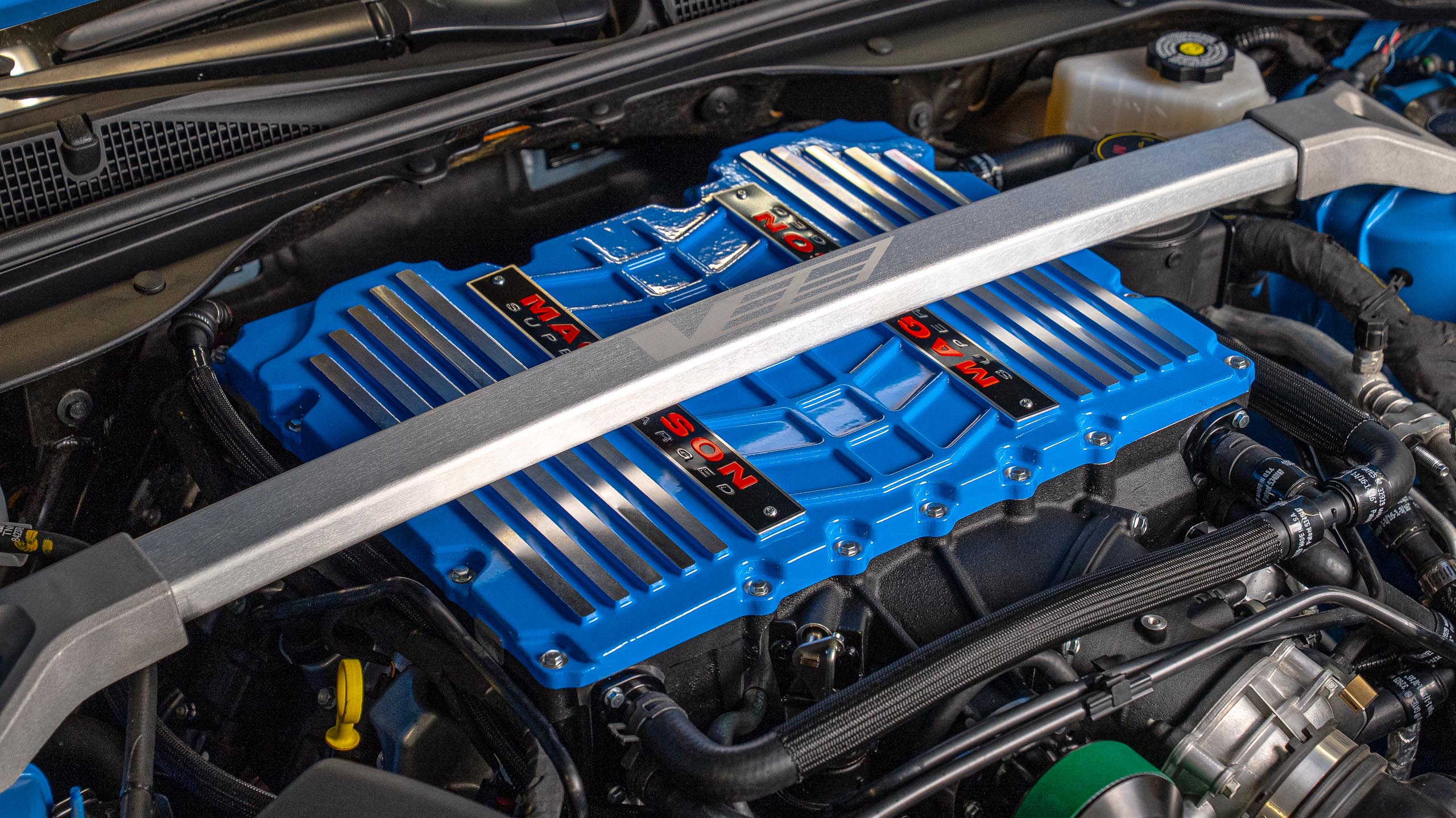

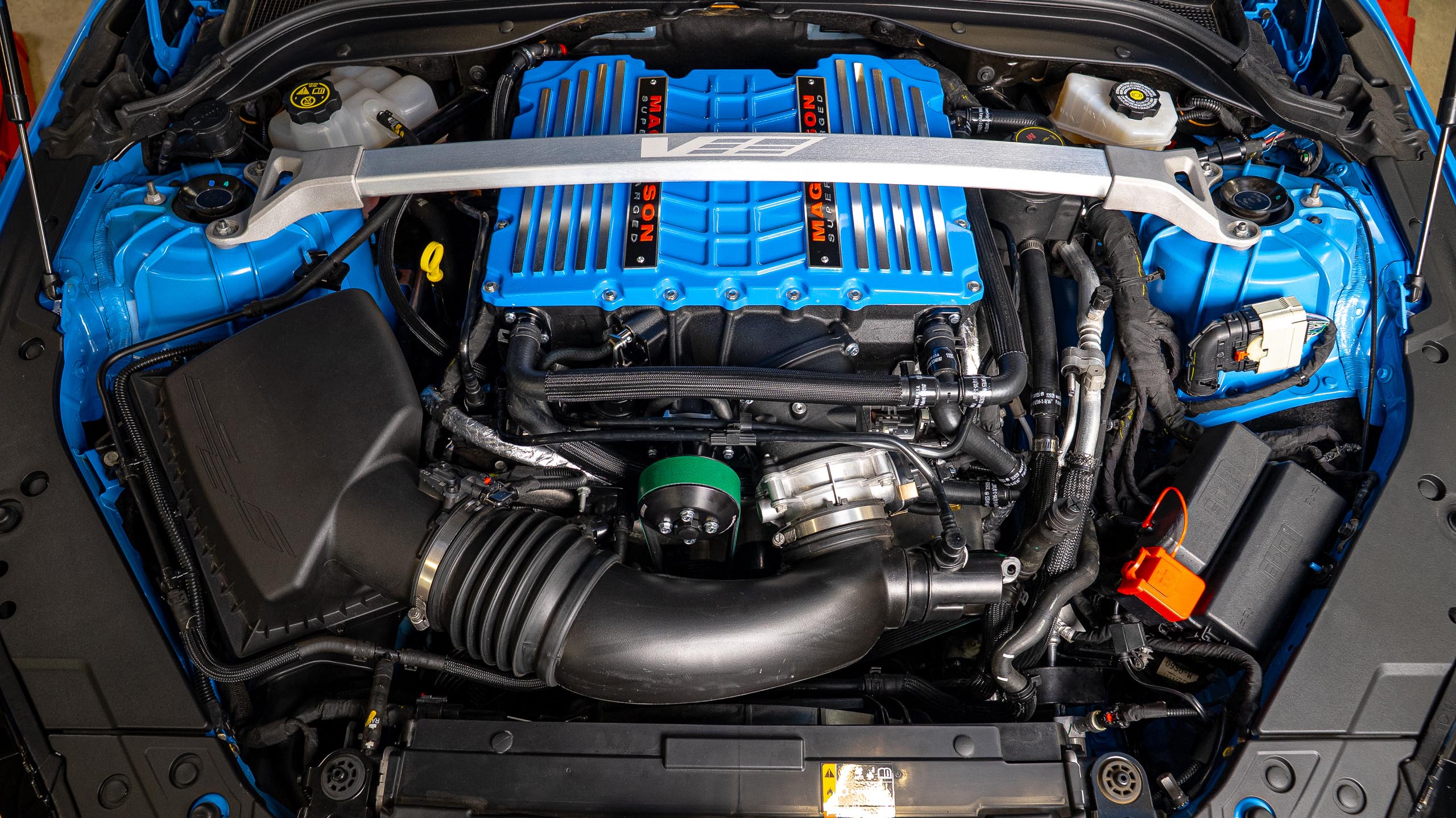

Take your Blackwing to the next level with Magnuson’s TVS2650 Supercharger System for the 2022+ Cadillac CT5-V. Featuring our same high-efficiency 2.65L blower design proven on platforms like the Camaro ZL1, this system moves more air and delivers cooler charge temps than the factory LT4 unit. The result is an additional +90 Peak horsepower and +76 ft-lbs of torque @6000 RPM—all while retaining the stock calibration. No tuning required. Twin charge air coolers keep intake temps in check for reliable, repeatable performance whether on the street or at the track. Built to OEM standards and engineered for a seamless install, Magnuson’s Blackwing upgrade comes complete with everything needed, right down to the hardware. Order yours today and experience the precision, power, and reliability of a Magnuson Supercharger on your Cadillac.
Features and Specifications
- +90 peak horsepower and +67ft-lbs @6000RPM on stock calibration.
- Magnuson TVS2650 Supercharger System designed to mount to GM LT4 heads with OEM look, fit and finish.
- Utilizes Eaton TVS Technology incorporating high helix, four lobe rotors for maximum supercharger efficiency across entire speed range.
- Utilizes patented Dynamic Flow Tuning (DFT) inlet porting.
- Fits cleanly under the hood and strut tower brace of the Blackwing.

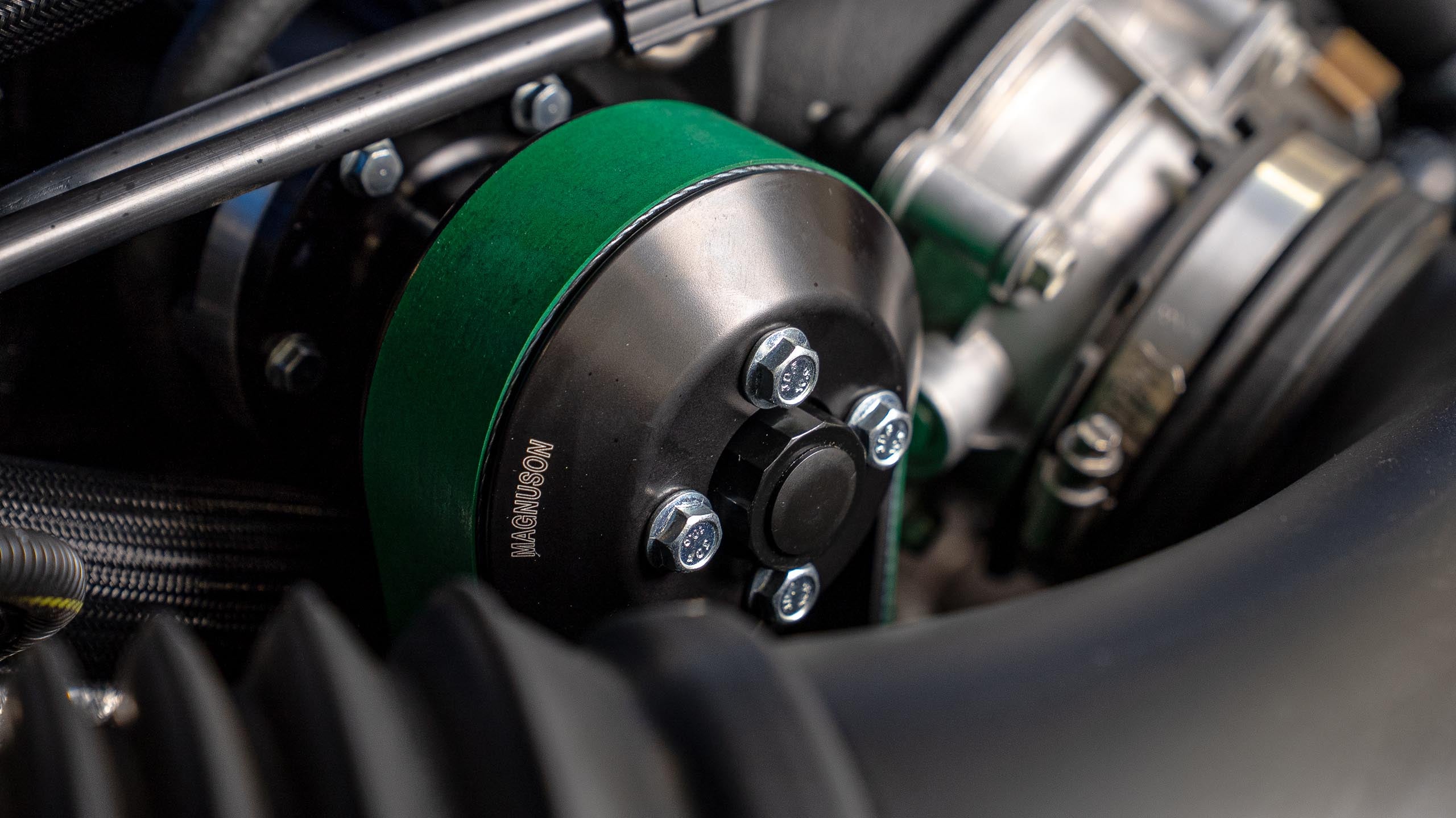

- Bolt-on anodized billet cartridge-style front drive allows for future belt line upgrades.
- High flow dual charge air cooler set-up with ¾" water inlet and outlet ports reduce coolant restriction, allowing maximum flow with extremely high cooling efficiency.
- CNC-machined ports for optimized airflow into engine cylinders.
- Vacuum bypass system with instantaneous boost response designed to unload supercharger at engine idle and part-throttle for improved fuel economy. Intercooled bypass air is recirculated through the supercharger for rapid cooldown and ultimate performance.
- Proven maintenance-free supercharger technology. No added complexity of external supercharger oil cooler/heaters for extreme climates.
- Utilizes the factory tune.
- Standard 3-year/36,000-mile limited Supercharger System Warranty. Additional 3-year/36,000-mile limited Powertrain warranty may apply.
Fitment
- 2022+ Cadillac CT5-V Blackwing with 6.2L LT4 Engine
