2004-2007 GM Truck and SUV*
*for 2007 model with "Classic" body styling with cathedral-port heads
**See Fitment Tab for Details
CARB EO Number:
Unleash the true potential of your GM Truck/2500 SUV with Magnuson’s TVS1900 Radix Supercharger System
Available for the 2004-2007 GM Trucks and 2500 SUVs, this bolt on supercharger is designed to deliver maximum performance while retaining factory-like drivability and reliability. Generating 6 psi of boost, the Magnuson TVS1900 Hybrid Roots Style Supercharger delivers power gains of approximately 120 horsepower and 120 foot-pounds of torque at the rear wheels! But peak horsepower and torque numbers don’t tell the whole story. "Under the curve" power is significantly enhanced delivering near instantaneous boost and torque upon demand that really pins you back in your seat. So whether you are roaring down the drag strip, towing a trailer, hauling a heavy load, or taking the family cross-country our TVS1900 supercharger will give you the torque and horsepower you need whenever you want it.
Inside of the supercharger manifold, a large liquid-to-air intercooler keeps your Intake Air Temperatures in check and provides consistent and repeatable performance. Combine that with the front-mounted heat exchanger, electric water pump, and intercooler coolant reservoir and you have a supercharger system that has IATs that are typically only 20-40 degrees (Fahrenheit) over the ambient temperature.
Maximizing your efficiency during cruising is the job of the supercharger’s integrated bypass valve. This vacuum operated system allows air to bypass the supercharger and the rotors to “free-spin" under light engine loads. During this situation the parasitic loss of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged vehicle to maintain stock-like drivability and fuel economy - giving you a package that delivers power without compromise.

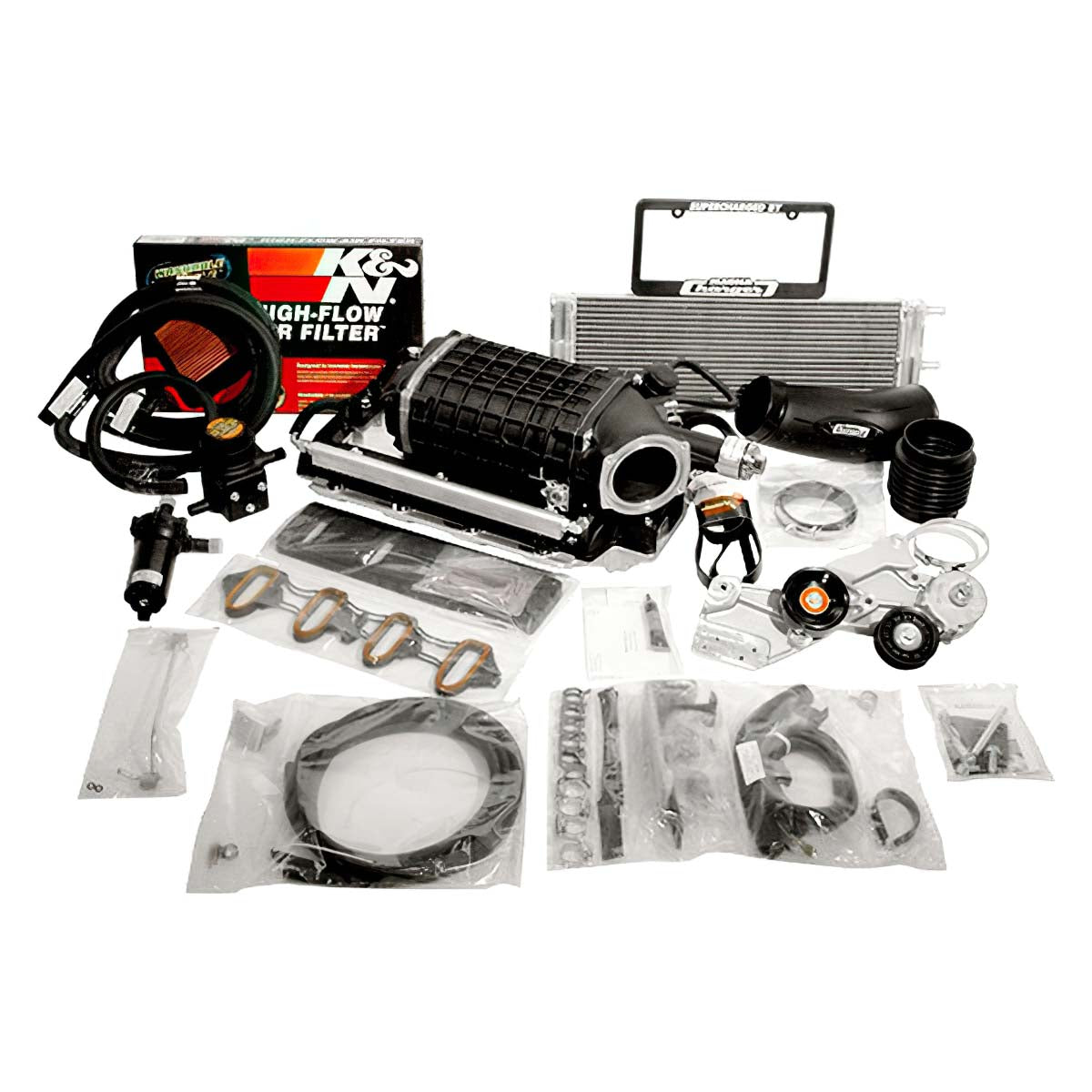

Down to the smallest part, our Magnuson line of bolt-on supercharger systems are engineered as a complete package. The supercharger, supercharger intake manifold, inlet, pulley, fuel injectors, fuel rails, front & rear fuel crossovers, and intercooler come pre-assembled to make installation simple and easy while the accessory box is organized into individual sub-assemblies to help ensure that you don’t lose track of parts in the middle of your install. All of the hardware needed for a full and complete install is also included so you won’t be running to the local parts store in the middle of your installation. In addition, our full color, step-by-step Installation Manuals will walk you through the install process with exacting attention to detail.
Magnuson’s TVS1900 supercharger utilizes EATON’s latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the Corvette ZR-1, the Cadillac CTS-V, and the Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-degrees of overall twist that are housed in Magnuson’s patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge temperatures, and is much quieter than many of its competitors. These superchargers are all manufactured in our TS16949 certified facility – the highest ISO OEM quality certification standard in the market. It is also designed to be nearly maintenance free so you won’t have to worry about anything once it is installed.
Features and Specifications
Manuals, Documents, and Calibration
- Installs in one day.
- 100% complete bolt-on system.
- More power in a smaller package
- 2004-2007 Chevrolet Silverado 1500 4.8L
- 2004-2007 Chevrolet Silverado 1500 5.3L
- 2004-2007 Chevrolet Silverado 1500 6.0L
- 2004-2007 Chevrolet Silverado 2500 6.0L
- 2004-2007 Chevrolet Silverado 2500 HD 6.0L
- 2004-2007 Chevrolet Silverado 3500 6.0L
- 2004-2007 GMC Sierra 1500 4.8L
- 2004-2007 GMC Sierra 1500 5.3L
- 2004-2007 GMC Sierra 1500 6.0L
- 2004-2007 GMC Sierra 2500 6.0L
- 2004-2007 GMC Sierra 2500 HD 6.0L
- 2004-2007 GMC Sierra 3500 6.0L
- 2004-2004 Chevrolet Suburban 2500 6.0L
- 2005-2006 Chevrolet Suburban 2500 HD 6.0L
- 2004-2006 GMC Yukon XL 2500 6.0L
Fits 2007 year model with "Classic" body styling and cathedral-port heads. For 2007 year models with "new" body styling and square port heads see the 01-19-60-007-BL Supercharger System for 2007-2008 Trucks
Confirm your vehicle's engine size by checking the VIN:
VIN#8= V or C for 4.8L Engines
VIN#8= B, M or 3 for 5.3L Gasoline Engines
VIN#8= N or U for 6.0L Engines
