2016-2023 Toyota Tacoma*
*See notes in Fitment Tab for 2023MY
CARB EO Number:

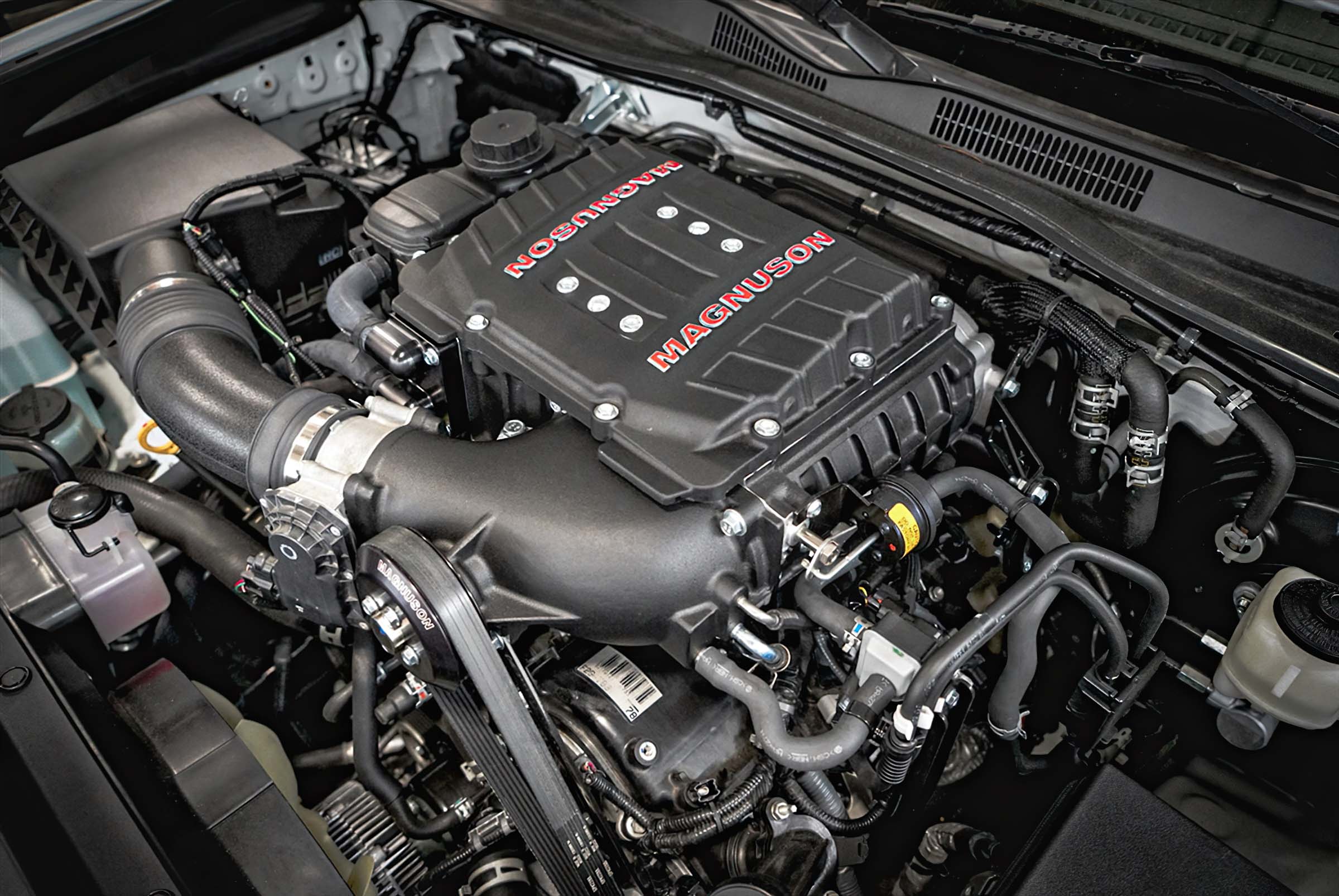

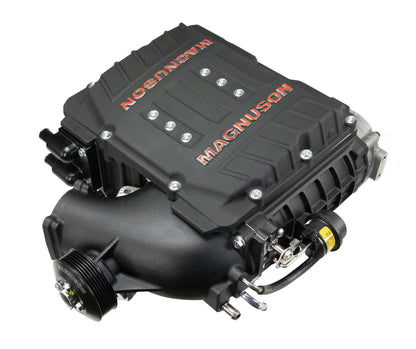

Magnuson’s Toyota Tacoma TVS1900 Supercharger System is designed exclusively for 2016 - 2023 model years, equipped with the 3.5L 2GR-FKS V6 engine. By carefully matching a TVS1900 supercharger to the 3.5L 2GR-FKS, Magnuson engineers have developed a direct bolt on system that delivers V8 level horsepower at a reasonable price.
In stock trim with no other system modifications, this kit delivers 5-6psi for 370+ hp and 330+ ft-lbs of torque at the crank, equivalent to ~308hp and ~275ft-lbs of torque to the rear wheels. That’s 32% more power than the stock V6!!!
Engineered to be robust, system incorporates High-thermal transfer intercooler for maximum aircharge cooling, yielding super low inlet air temps for consistent power from startup to shut down and to abate belt slip even under extreme conditions of 4-wheeling, the TVS1900 boasts a custom engineered supercharger belt-drive system for worry-free driving both on and off-road.

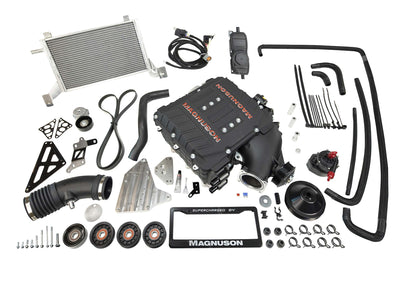

This system was developed to be a direct bolt on kit with minimal downtime, and straightforward installation. An enthusiast with basic tools can install the system in a weekend, or about a day for an experienced installer. In addition, a Magnuson calibration is included so the ‘tuning’ is already done for you. The TVS1900 also looks and fits like OEM, almost like it belongs there. With no cutting or welding, it’s also easily reverted to stock. The supercharger itself is maintenance free- pre-filled and sealed, nothing to check or top off for the lifetime of the engine.
With Toyota reliability and V8 power, what are you waiting for?
Note: Available for all 2016-2023 Toyota Tacoma's including stock and modified vehicles. For extreme builds, please contact our sales team to verify suitability for tuning. See Fitment tab for more details.
Features and Specifications
Manuals, Documents, and Calibration
- Positive displacement Roots design with OEM-level durability
- Roots type blower provides instant torque even down low
- Instant Response – No Turbo Lag
- Over 370 hp / 330 ft-lbs @ crank
- Robust Cooling Keeps IATs Consistent for All Day Power
- Custom engineered supercharger belt-drive system for worry-free driving both on and off-road

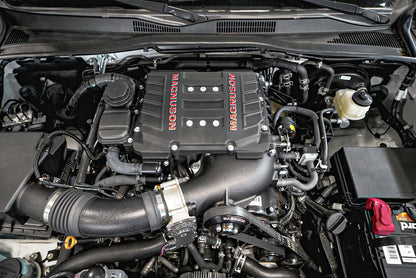

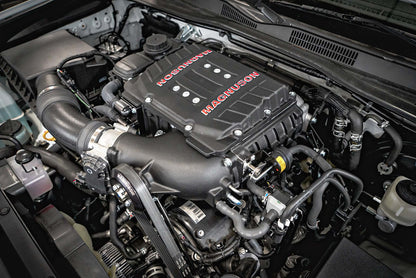

- Direct bolt-on installation with OEM look, fit and finish
- Maintenance Free Design – Nothing to fill or oil to change
- Includes calibration
- CARB EO# - D-488-54
2016- 2023* Toyota Tacoma vehicles with the 2GR-FKS 3.5L V6 engine with automatic or manual transmission.
NOTE FOR 2023 MODEL YEAR: CAL IDs that are new and not supported may require the PCM be sent in to be unlocked and supported. This is a 3 week process. Please ID the PCM before installing the supercharger kit.
Calibration available for stock or modified vehicles. Modifications must be documented when submitting the Calibration File Form to Magnuson. For extreme builds, please contact our Sales Department to verify suitability for tuning in advance of purchasing kit.
NOTE TO CUSTOMERS WITH MODIFIED VEHICLES: The Magnuson calibration included with this kit is intended to work on stock vehicle configurations, including stock trim levels and stock OEM vehicle options. Modifications to your stock vehicle including, but not limited to, engine, flywheel, clutch, torque converter, transmission, wheels, tires, axles, gears, driveshafts, induction system, exhaust system and additional weight (ie. bumpers, racks, etc.) can have a significant impact on your vehicle’s calibration and may require modifications to our calibration as supplied. While we attempt to minimize the need for modifications during our development process, it is impossible for our team to account for all possible build variations/combinations, and in some cases it may be necessary for you to supply an additional element of customization for your vehicle—custom calibration—and to work, at your own direction and expense, with a local service facility to address your unique combination of hardware and make calibration adjustments as necessary. Please be aware that standard product warranties and governmental emissions certifications are predicated on stock vehicle configurations, and vehicle modifications and calibration changes may affect or even void powertrain warranty and emissions certification status (such as CARB emissions certification). It is the sole responsibility of the customer making a warranty claim to prove that any vehicle modifications and calibration changes were within warranty. It also is the sole responsibility of the customer to determine if the modifications and changes comply with all local, state and federal emissions standard
