Sold out

Fitment:

See Fitment Tab for Details

Part Number:

01-26-59-013-BL

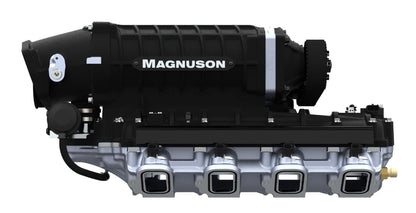

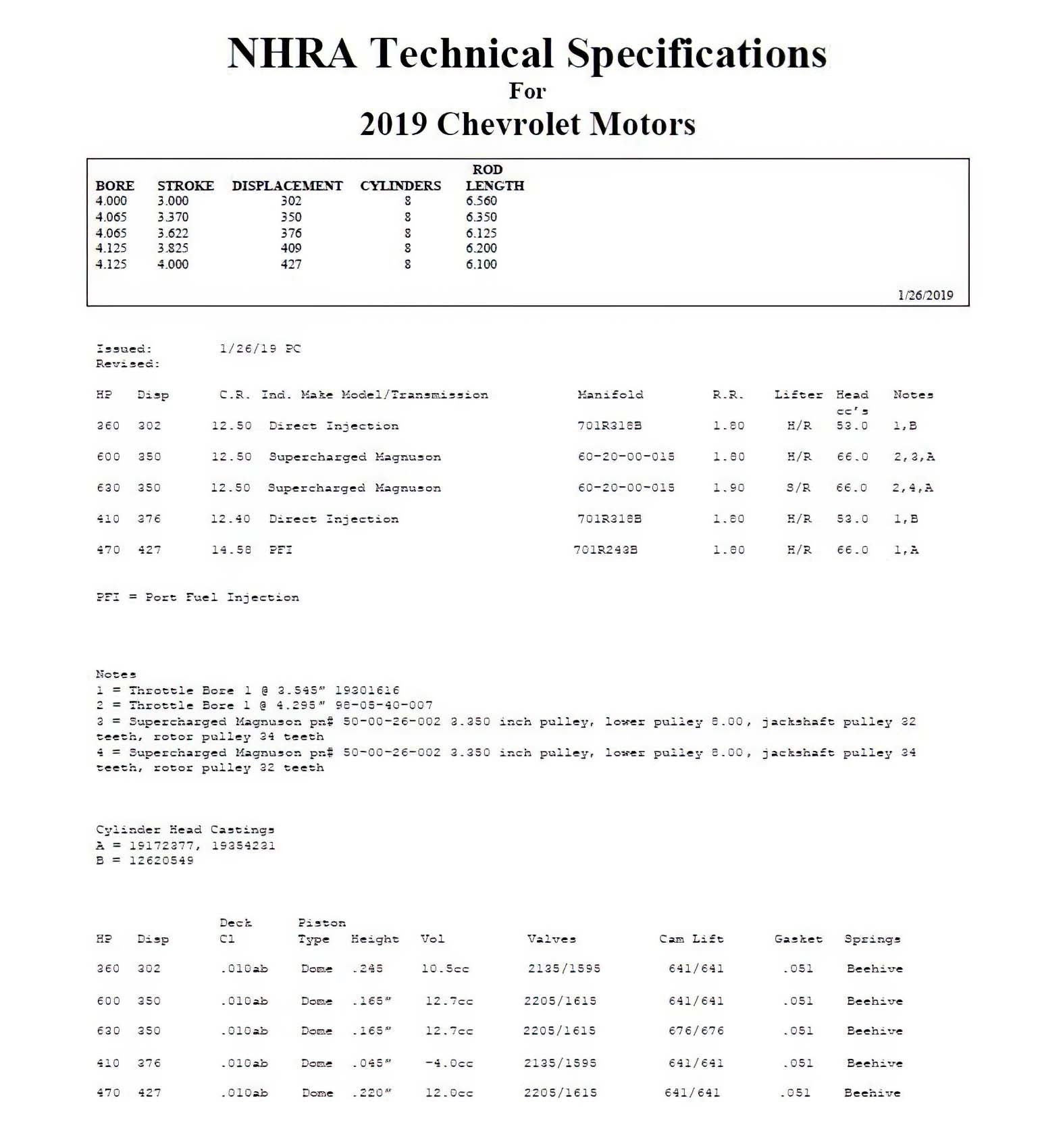

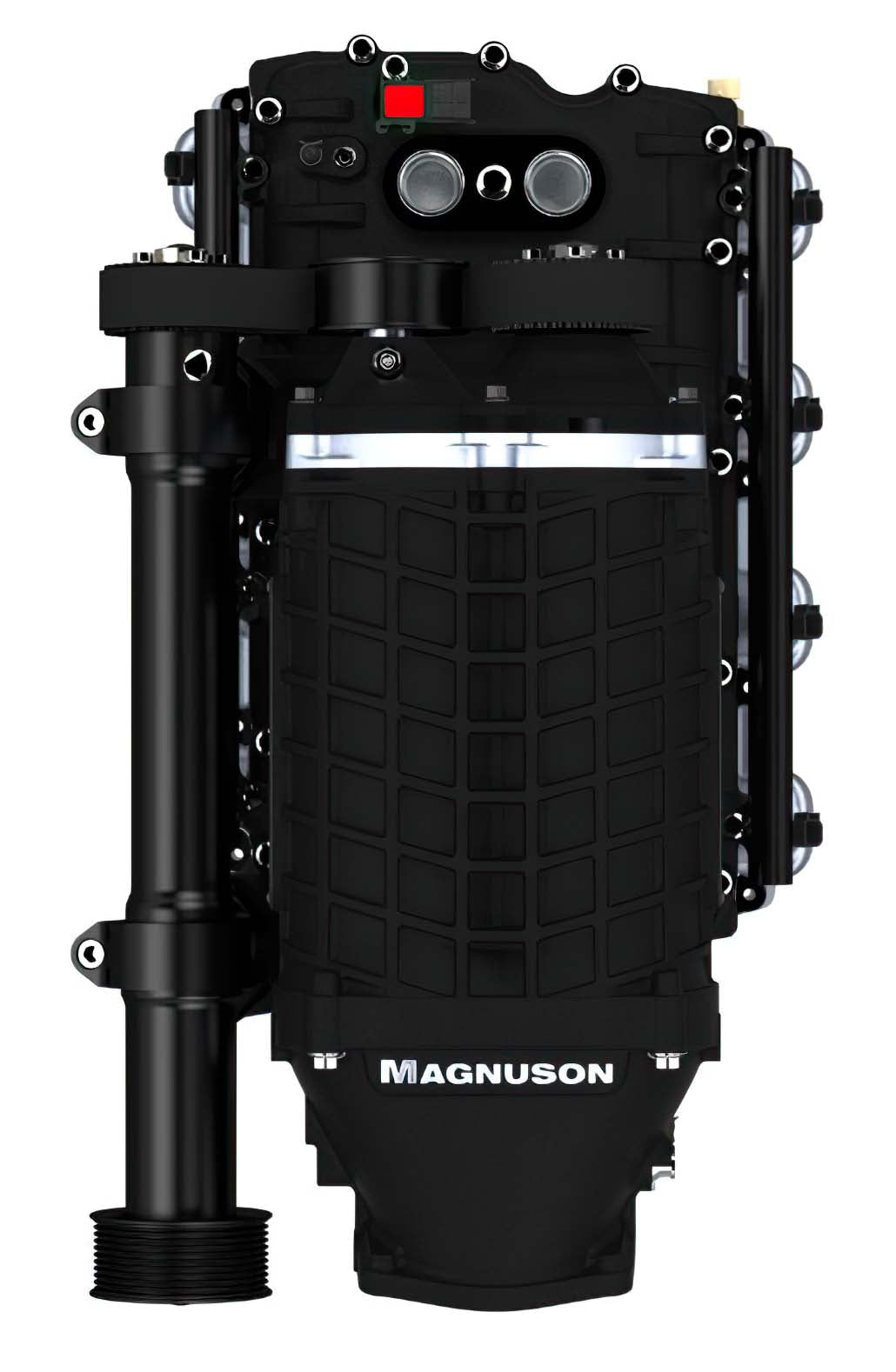

Magnuson’s largest and most efficient supercharger yet, the TVS2650 ‘Mag Drag’ kit for LS7 engine application. This jackshaft-based system is geared for your high horsepower race applications capable of up to 1,500HP with appropriate engine modifications. All components meet the NHRA’s 2019 Technical Specifications for Chevrolet engines used in FS/S and FS/XX divisions

  • Magnuson TVS2650 Supercharger system complete with LS7 specific lower manifold, intercooler and drive system
  • Includes NHRA approved TVS2650 rotors #60-20-00-015 with Eaton TVS(r) Technology. High helix, four-lobe rotors for maximum supercharger efficiency across the entire speed range
  • Patent-pending Supercharger housing designed to deliver huge airflow at high engine speeds for maximum horsepower levels
  • Designed to fit under the hood of 2015+ COPO CAMARO 350SC (hood modifications may be required for other vehicle applications)
  • Low maintenance cartridge style jackshaft system with high torque/low inertia carbon fiber driveshaft
  • High flow charge air cooler and massive 1-inch (-16ORB) ports reduce coolant restriction allowing maximum flow with extremely high cooling efficiency. The coolant ports accept most aftermarket fittings, allowing endless customizability
  • High flow inlet duct designed for 109mm mechanical throttle body or electronic throttle with GM LT5 bolt pattern. Works with Magnuson’s 109mm mechanical throttle body #98-05-40-007 as used on the 2019MY COPO Camaro available here
  • Port injection fuel system with hard anodized, extruded aluminum fuel rails with ½” thru bore that are compatible with standard short body (LS9 style) style injectors (fuel injectors not included).
  • Two-piece 91mm (3.590 inch) front 10-rib pulley with interchangeable rear cog belt system allowing for drive ratio optimization. Supplied with standard 32 and 34 tooth cogs for up to 6% overdrive of front pulley. Optional NHRA approved 85mm (3.350 inch) #57-03-10-085-BL also available here
  • Fast response, vacuum bypass system designed to unload supercharger at engine idle speeds and allow intercooled air to be recirculated through the supercharger for rapid cool down
      • Backward compatible with 2015+ COPO supercharger
      • NHRA approved for 2019 GM Chevrolet 350 SC engine option

Magnuson Mag Drag Belt Installation and Torque Specs Manual PDF
